“This next-generation series enhances performance and reliability while maintaining backward compatibility,” according to the company. “With improved features such as enhanced RF input performance, USB-C connectivity, and a compact design, the Gen 2 series is designed to facilitate signal acquisition, generation and processing, whether used in educational settings, or in professional industrial or scientific environments.”
The new models retain two 60MHz 125Msample/s inputs, and two 60MHz 125Msample/s outputs.
The new models are:

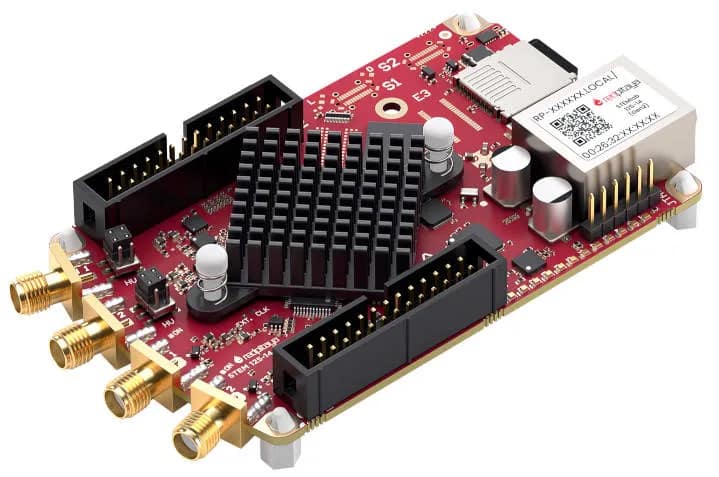

- Stemlab 125-14 Gen 2
- Stemlab 125-14 Pro Gen 2 adds a connector for QSPI and eMMC booting and external clock input for multi-channel synchronization.
- Stemlab 125-14 Pro Z7020 Gen 2 is like the Pro Gen2, but with double ram (1Gbyte), a larger FPGA (Z7020) and eight extra fast differential pairs.
“All offer enhanced RF input performance with reduced noise, cross-talk and distortions, an improved output voltage range of ±1V at 50Ω, and ±2V at high impedance,” said Red Pitaya.
| Stemlab 125-14 | Gen 1 | Gen 2 | Pro Gen 2 | Pro Z7020 Gen 2 |
|---|---|---|---|---|
| Arm processor | Dual-core Cortex-A9 |
|||
| Xilinx FPGA | Zynq 7010 | Zynq 7020 | ||
| RAM | 512Mbyte | 1Gbyte | ||
| USB connection | Micro USB | USB-C | ||
| Power | 5V, 2Amax | 5V, 3Amax | ||
| Ethernet | 1Gbit/s | |||
| USB | USB 2.0 | USB-C 2.0 | ||
| Wi-Fi | Requires dongle |
|||
| Bandwidth in/out | dc to 60MHz | |||
| Rf connector | SMA | |||
| DAC | 14bit | |||
| RF output range | ±1V (50 Ω) | ±1V (50 Ω) ±2V (Hi-Z) |
||
| External ADC clock | some models | No | Yes | |
| 3.3V digital IOs | 16 | 22 | ||
| Boot options | SD Card | SD Card (QSPI, eMMC via add-on) |
||
See the instruments on Red Pitaya’s stand at Embedded World today and tomorrow, or find them on the company’s web page
Red Pitaya is based in Slovenia.
